Cabinets and Air

Treatment Equipment

SERIES MODELS CBK

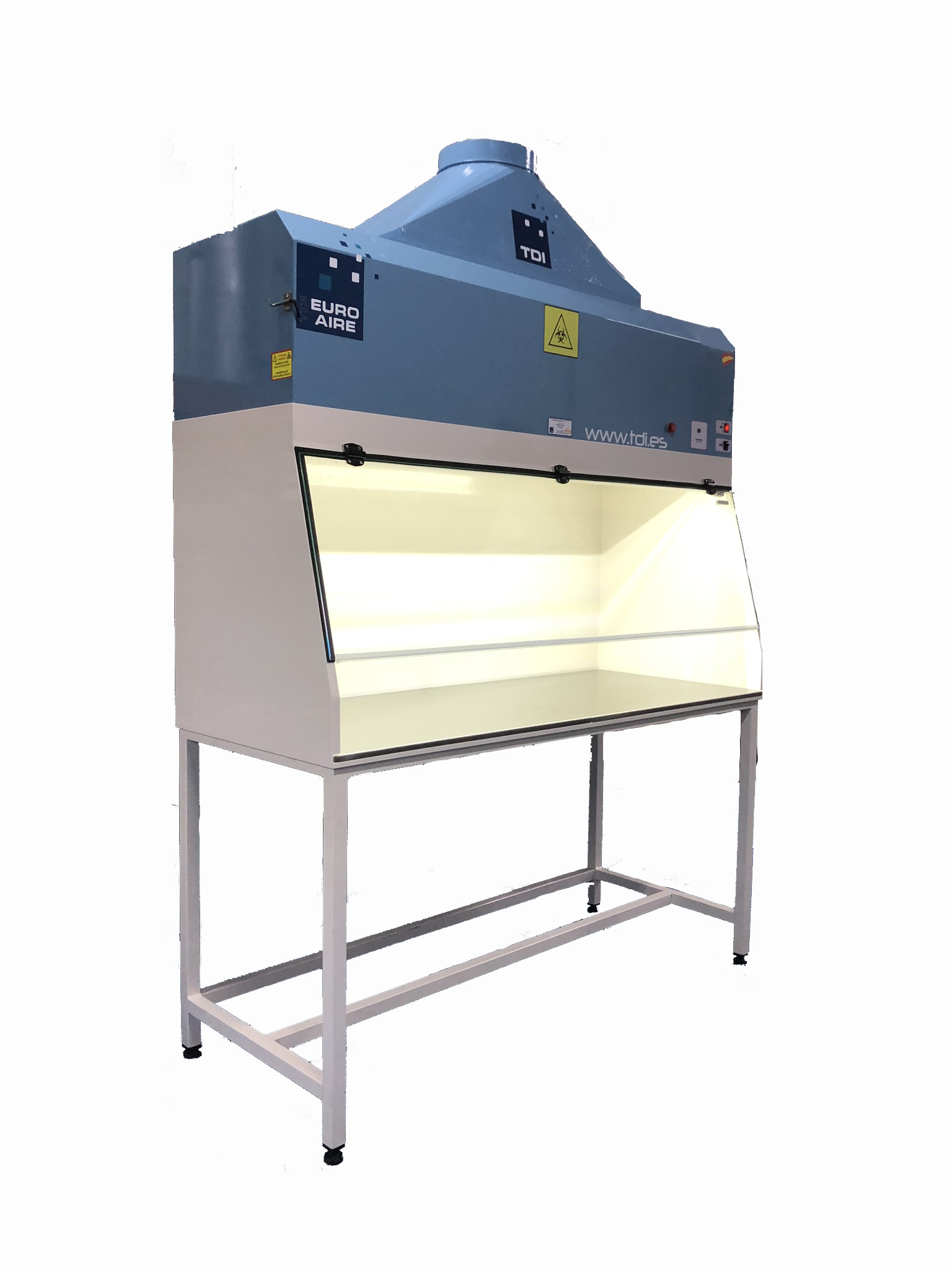

BIOLOGICAL SAFETY CABINET CLASS I Series CBK

Description
Class I biological safety cabinet, according to UNE EN 12469. It is designed to give total protection to the operator and her environment while handling microorganisms. They are offered in different sizes.

Description

  • Biological safety cabinet type: Class I according to EN 12469.
  • Designed to provide full protection for the operator and their surroundings while handling microorganisms or biological products of low and/or moderate risk; product protection is not required.
  • Work area and work surface constructed of AISI 304 stainless steel.
  • Air is filtered through an H14 HEPA absolute filter (99.995% efficiency at MPPS, EN 1822 standard)
  • High-performance motor with adjustable speed.
  • The CBK Series of Cabinets is available in two versions: stainless steel or epoxy-coated steel.
  • Control panel for power on and control of white and UV lighting.
  • Protective barrier in the work zone with a velocity greater than 0.70 m/s; greater than 0.53 m/s if an activated carbon filter is added.
  • CBK Series Cabinets include barrier loss alarms triggered by door opening.
  • Fluorescent and UV lighting.
  • Operating voltage: 220 V, 50/60 Hz.



“All information, specifications, dimensions, and electrical data shown in TDI’s commercial documents and data sheets are for guidance only and are not binding; therefore, they are subject to change according to each customer’s needs and provided that applicable regulations permit it.”

MODEL CBK 80 (P) CBK 120 (P) CBK 150 (P) CBK 170 (P) CBK 180 (P)
Working area
(width x depth x height) mm
800 x 705 x 725 1200 x 705 x 725 1500 x 705 x 725 1700 x 705 x 725 1800 x 705 x 725
External dimensions (mm) 815 x 720 x 1110 1215 x 720 x 1110 1515 x 720 x 1110 1715 x 720 x 1110 1815 x 720 x 1110
Shipping dimensions (mm) 915 x 800 x 1200 1315 x 800 x 1200 1615 x 800 x 1200 1815 x 800 x 1200 2015 x 800 x 1200
Weight (kg) 110 140 170 190 215
Material Work area and surface made of AISI 304 stainless steel.                        NOTE:     (P) Models:  Work area made of epoxy-coated steel

and work surface in AISI 304 stainless steel

Control system Motor with Manual Continuous Speed Control
Exhaust filter Hepa H14 absolute filter with 99.995% mpps efficiency according to EN 1822
Additional exhaust filter Activated carbon filter
HEPA H14 filter barrier > 0.70 m/s
Barrier with additional activated carbon filter > 0.53 m/s
Noise level ≤ 45 dB
LED lighting 1 x 10 W
600 mm
800 lux
1 x 14 W
900 mm
1120 lux
1 x 18 W
1200 mm
1338 lux
1 x 23 W
1500 mm
1840 lux
1 x 23 W
1500 mm
1840 lux
Ultraviolet lamp 1 x 20 W 1 x 30 W 1 x 30 W 1 x 30 W 1 x 30 W
Power 220 V, 50 Hz ± 10%
Applicable standards NSF 49, EN 12469
Table Mount Optional optional optional optional optional
Engines 1 2 3 3 3
Power consumption W 210 300 500 500 500

Optional Accessories:

  • Gas inlet with electronically controlled valve.
  • Vacuum inlet
  • Unit support table.
  • Hydrogen peroxide decontamination connector.
  • Adapter for external connection with 300 mm diameter outlet.
  • Second activated carbon filter.
  • USB ports.
REFERENCE DESCRIPTION
00-CBK80 EUROAIRE CBK 80 CLASS I BIOSAFETY CABINET, AISI 304 STAINLESS STEEL
00-CBK80P EUROAIRE CBK 80 CLASS I BIOLOGICAL SAFETY CABINET, EPoxy-COATED WITH AISI 304 STAINLESS STEEL SURFACE
00-CBK120 EUROAIRE CBK 120 CLASS I BIOSAFETY CABINET, AISI 304 STAINLESS STEEL
00-CBK120P EUROAIRE CBK 120 CLASS I BIOSAFETY CABINET, EPoxy-COATED WITH AISI 304 STAINLESS STEEL SURFACE
00-CBK150 EUROAIRE CBK 150 CLASS I BIOSAFETY CABINET, AISI 304 STAINLESS STEEL
00-CBK150P EUROAIRE CBK 150 CLASS I BIOSAFETY CABINET, EPoxy-COATED WITH AISI 304 STAINLESS STEEL SURFACE
00-CBK170 EUROAIRE CBK 170 CLASS I BIOSAFETY CABINET, AISI 304 STAINLESS STEEL
00-CBK170P EUROAIRE CBK 170 CLASS I BIOSAFETY CABINET, EPoxy-COATED WITH AISI 304 STAINLESS STEEL SURFACE
00-CBK180 EUROAIRE CBK 180 CLASS I BIOSAFETY CABINET, AISI 304 STAINLESS STEEL
00-CBK180P EUROAIRE CBK 180 CLASS I BIOSAFETY CABINET, EPoxy-COATED WITH AISI 304 STAINLESS STEEL SURFACE
52-ADAP-CBK80 ADAPTER FOR EXTERNAL EXHAUST, CBK80 CABINET, PIPE DIAMETER 300 MM
52-ADAP-CBK1215 ADAPTER FOR EXTERNAL EXHAUST, CBK120/150 CABIN, PIPE DIAMETER 300 MM
52-ADAP-CBK1718 ADAPTER FOR EXTERNAL EXHAUST, CABIN CBK170/180, PIPE DIAMETER 300 MM
52-MSOPCBK80 CABIN SUPPORT TABLE, 40 mm pipe, epoxy-coated CBK80  800 (width) x 700 (depth) x 900 (height) (mm)
52-MSOPCBK120 CABIN SUPPORT TABLE, 40 mm tube, epoxy-coated, CBK120  1200 (W) x 700 (D) x 900 (H) (mm)
52-MSOPCBK150 CABIN SUPPORT TABLE, 40 mm tube, epoxy painted, CBK150  1500 (W) x 700 (D) x 900 (H) (mm)
52-MSOPCBK170 CABIN SUPPORT TABLE, 40 mm tube, epoxy painted CBK170  1700 (W) x 700 (D) x 900 (H) (mm)
52-MSOPCBK180 CABIN SUPPORT TABLE, 40 mm tube, epoxy painted CBK180  1800 (W) x 700 (D) x 900 (H) (mm)
