Ref.: 00-CBKxxx-G

CLASS I BIOSAFETY CABINET WITH RECIRCULATION, DOUBLE FILTERING, AND VAPOR AND GAS PURIFICATION – CBK-G MODEL

Diagrama - Cabinas de seguridad biológica Clase I
a1bbcabf-972a-4f4a-b465-008ab127b087
_DSC7924
Description
  • Biological safety cabinet type: CLASS I according to EN 12469, with mixed filtration for vapors and gases.
  • Compact system that includes filters + ducts + motors within a single unit.
IN ACCORDANCE WITH – UNE EN 14175 – NF X15-211 – BS 7989 – UNE EN 12469
BioSafety CabinetsCabinets and Air Treatment EquipmentCLASS I

Description

  • Biological safety cabinet type: CLASS I according to EN 12469, with mixed filtration for vapors and gases.
  • Compact system that includes filters + ducts + motors within a single unit.
  • Designed to provide total protection for the operator and their surroundings while handling microorganisms or biological and chemical products of low and/or moderate risk.
  • Work area constructed of galvanized steel with anti-corrosion protection + a layer of anti-corrosion polymeric paint.
  • 8 mm opal tempered glass work surface, spill-resistant.
  • The air is filtered through FOUR stages:
    1. G4 pre-filter (90% efficiency) (OPTIONAL)
    2. HEPA H14 molecular absolute filter (99.995% MPPS efficiency according to EN1822).
    3. Main activated carbon chemical filter for absorption of hazardous gases and vapors.
    4. Safety activated carbon chemical filter for absorbing hazardous gases and vapors.
  • Continuous filter saturation detection system, located between the filters.
  • The CBK Series Enclosures are constructed of epoxy-coated galvanized steel, offering high resistance to chemical corrosion.
  • Safety barrier in the work zone where air velocity exceeds 0.53 m/s, with an airflow rate of 220 m³/hr.
  • Automatic speed control system with alarms.
  • LED and UV lighting.
  • Monitoring of speeds, filter saturation level, ventilation level, suction speed…
  • The CBK-G Series Booths include alarms for:
    • Barrier loss due to door opening.
    • Loss of molecular efficiency.
    • Molecular filter saturation detection
    • Decrease in suction speed or motor speed. Ventilation failure indicator.
    • Filter expiration and clogging level.
    • Detection system expiration
  • They are equipped with an internet connection for remote monitoring/control via PC, smartphone, etc.
  • Includes a feature update system to stay current with regulatory changes



“All information, specifications, dimensions, and electrical data shown in TDI’s commercial documents and data sheets are for guidance only and are not binding; therefore, they are subject to change according to each customer’s needs and provided that applicable regulations permit it.”



MODEL CBK 80 –G (P) CBK 120 –G (P) CBK 150-G (P) CBK 180-G (P)
Working area

(width x depth x height) mm

 800 x 705 x 725 1200 x 705 x 725 1500 x 705 x 725 1800 x 705 x 725
External dimensions (width x depth x height) (mm) 815 x 720 x 1110 1215 x 720 x 1110 1515 x 720 x 1110 1815 x 720 x 1110
Shipping dimensions (width x depth x height) mm 915 x 800 x 1200 1315 x 800 x 1200 1615 x 800 x 1200 2015 x 800 x 1200
Weight (kg) 120 150 180 225
Material  Work area: Epoxy-coatedgalvanized steel and 8 mm opal tempered glass surface

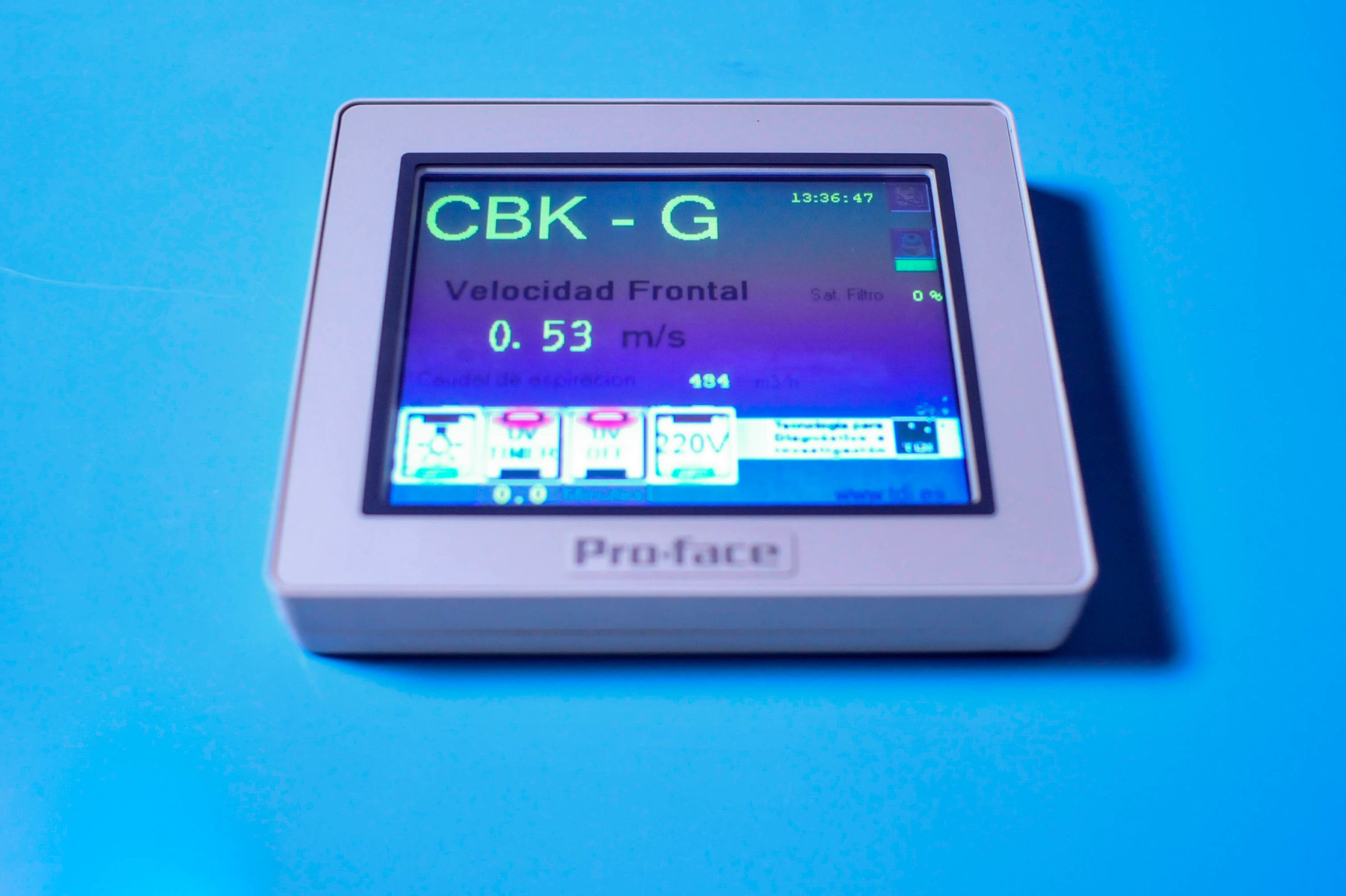

Control system Automatic regulation controlled by a PLC microprocessor and touchscreen
Cabinet Filters Type P Hepa H14 absolute filter with 99.995% MPPS efficiency according to EN 1822
Cabinet Filters Type V Main activated carbon filter for gases and vapors

Activated carbon safety filter for gases and vapors
PV-Type Cabin Filters H14 HEPA absolute filter with 99.995% MPPS efficiency according to EN 1822

Main activated carbon filter for gases and vapors

Activated carbon safety filter for gases and vapors
Barrier (velocity / flow rate) > 0.53 m/s,   220 m³/hr
Sound level ≤ 45 dB
LED lighting 1 x 10 W (600 mm) (1000 lm) 1 x 14 W (900 mm) (1400 lm) 1 x 18 W (1200 mm) (1673 lm) 1 x 23 W (1500 mm) (2300 lm)
Ultraviolet lamp (OPTIONAL) 1 x 20 W 1 x 30 W 1 x 30 W 1 x 30 W
Power 220 V, 50 Hz ± 10%
Applicable Standards CE, UNE EN 12469, UNE EN 14175, AFNOR NF X 15211:2009, BS 7989:2001, ISO 9001 (INSBBT NPT 1055)
Support Table optional optional optional optional
Motors 1 2 3 3
Front Panel 2 split panels (one with access hatches) made of 6 mm thick PMMA, transparent, colorless, and resistant to chemical corrosion.
Power Consumption W

(excluding plug)

 68 70 83 120

Optional Accessories:

  • Unit support table with wheels
  • UV light and 220 V outlet
  • Remote control and system monitoring software
Code Description
00-CBK80-G Class I Booth  HEPA H14 + Carbon Filter Model CBK 80

epoxy paint and glass surface
00-CBK120-G Class I Booth  HEPA H 14 + Carbon Filter Model CBK 120

epoxy paint and glass surface
00-CBK150-G Class I Booth  HEPA H14 + Carbon Filter Model CBK 150

epoxy paint and glass surface
00-CBK180-G Class I Booth  HEPA H14 + Carbon Filter Model CBK 180

epoxy paint and glass surface
52-ADAP-CBK80 Adapter for external exhaust, CBK 80 Booth, 300 mm pipe diameter
52-ADAP-CBK1215 Adapter for external exhaust, CBK 120/150 cabinet, 300 mm pipe diameter
52-ADAP-CBK1718 Adapter for external exhaust, CBK 170/180 enclosure, 300 mm pipe diameter
52-MSOPCBK80 Support table for CBK 80 booth, 40 mm tube, epoxy paint

800 (width) x 700 (depth) x 900 (height) (mm)
52-MSOPCBK120 Support table for 40 mm tube cabinet, epoxy paint, CBK 120 cabinet

1200 (width) x 700 (depth) x 900 (height) (mm)
52-MSOPCBK150 Support table for 40 mm tube cabinet, epoxy paint, CBK150 cabinet

1500 (width) x 700 (depth) x 900 (height) (mm)
52-MSOPCBK170 Support table for 40 mm tube cabinet, epoxy paint, CBK170 cabinet

1700 (width) x 700 (depth) x 900 (height) (mm)
52-MSOPCBK180 40 mm Tube Cabinet Support Table, Epoxy Painted CBK180 Cabinet

1800 (width) x 700 (depth) x 900 (height) (mm)
